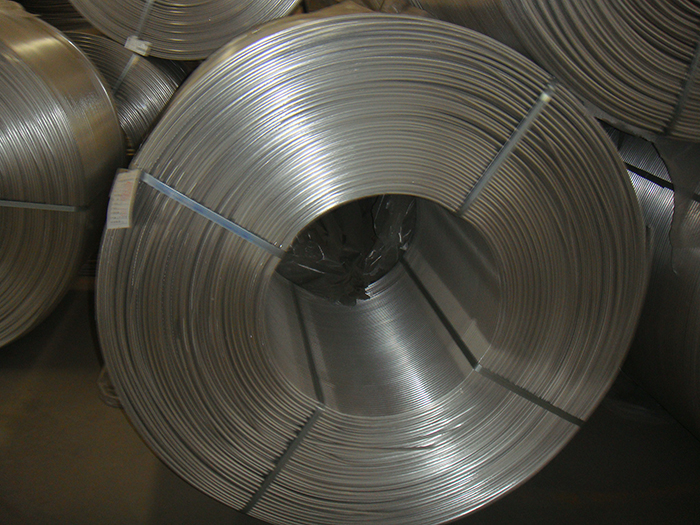

1 Series Alloy Aluminum Rod

1050,1060,1A60,1070,1100,1350,1370 ,1B90,1B93,1B95,1B97 Aluminum rod

Thealloy1050,1060,1A60,1070,1100,1350,1370 ,1B90,1B93,1B95,1B97 Aluminum rod,because of it’s aluminum content is higher ,so it is called pure aluminum rod.

Signi ‘s production process advantage
Signi’s aluminum rod has been produced by the electromagnetic stirring, online degassing, ceramic filtration, online heating, online quenching etc high degree automation and high-tech production process,to ensure product quality.



And Signi aluminium has made lots of independent research and development on all type of aluminum rod, produced the special performance of high electrical conductivity and high-strength aluminum electrical round rod,it’s mechanical properties and electrical properties, etc parts all belongs to the high-end products in the new materials industry, walk at the forefront of the market.


1050,1060,1A60,1070,1100,1350,1370 ,1B90,1B93,1B95,1B97 Aluminum rod specification:

Series

Alloy

 Temper

Product type and specification

   Aluminum rod/Specification (mm)

Diameter

General application

   1XXX

    1100





       F,O,H12,H14,H16

   7.0-20.0

  Cable and wire

    1050

    1060

   1070

    1350

    1370

    1A60

   1B90,1B93

   1B95,1B97

Diameter deviation and non-round degree on aluminum rod or electrical purpose

Diameter

Deviation

Non-round degree less than

7.0-9.0

±0.5

0.6

9.0-11.0

±0.5

0.9

11.0-12.0

±0.5

0.9

Notes: non-round degree is the difference between the biggest and the smallest diameters obtained from the same section where the rod is vertical to axis.


Some alloy of pure aluminum rod Mechanical properties and Volume Resistivity:

Alloy

Model

   Temper

  Tensile Strength

  (Mpa)

Elongation(10%)

(no less than)

Volume Resistivity (20℃) (nΩ·m)

( not more than)

1B90,1B93

   1B95,1B97

B

     O

   35-65

     35

      27.15

B2

     H14

   60-90

     15

      27.25

1A60

1350

A

     O

   60-80

     25

      27.55

A2

    H12

   80-110

     12

      27.85

A4

    H12

  95-115

     10

      28.01

A6

    H14

  110-130

      8

      28.01

A8

    H16

  120-150

      6

      28.01




Alloy

Tensile Strength

(Mpa)

Elongation(10%)

(no less than)

Volume Resistivity (20℃)(nΩ·m)

( not more than)

Electric Conductivity

(%)IACS

1060

115-125

8

      27.350

62.5

120-135

6

27.40

62.5


 Pure aluminum rod Description: Signi pure aluminum rod has the advantages of high roundness, good surface finish, uniform size, etc. The electrical conductivity and mechanical properties are in line with the standards of the International Electrotechnical Commission (IEC) and the American Society for Testing and Materials (ASTM).

Typical application:
1050,1060,1A60,1070,1100,1350,1370 ,1B90,1B93,1B95,1B97 Aluminum rod are widely used in wire and cable, vacuum aluminized film, electrical instrumentation, welding of metal materials, household hardware, metal anti-corrosion spray, steel plant deoxidation aluminum wire (automatic wire feeding), double wrap aluminum wire ,Deoxidized aluminum particles,
aluminium shot etc industries
