2017 is a typical hard aluminium alloy in the aluminium-copper-magnesium system. Its composition is reasonable and its comprehensive performance is good. Many countries produce this alloy, which is the largest amount of hard aluminium. The alloy is characterized by high strength and heat resistance, and can be used as working parts below 150 degree C. The strength of 2017 alloy is higher than that of 7075 alloy when the temperature is higher than 125 degree C. The formability is better in hot state, annealing and new quenching state, and the heat treatment strengthening effect is remarkable, but the heat treatment process is strict. Corrosion resistance is poor, but pure aluminium coating can be effectively protected. Cracks are easy to occur during welding, but special technology can be used to weld or rivet. It is widely used in aircraft structure, rivets, truck hub, propeller components and other structural parts.




Material use

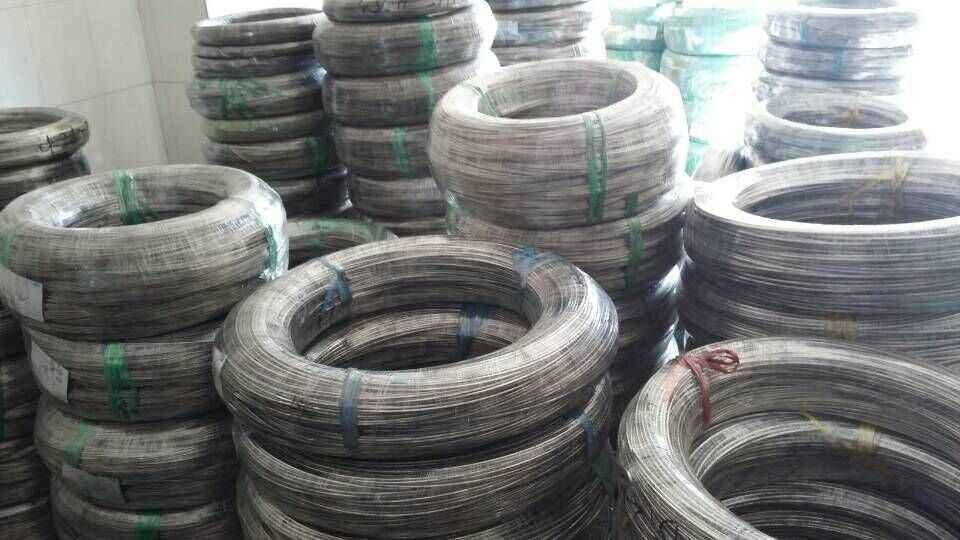

The 2017 aluminium wire is usually used in rivets, general mechanical parts, aircraft, ships, transportation, building structures, transport tools, propeller components and accessories.

physical property

chemical composition

Iron (Fe): 0.70
Manganese (Mn): 0.40-1.0
Magnesium (Mg): 0.4-0.80
Silicon (Si): 0.20-0.80
Zinc (Zn): 0.25
Titanium (Ti): 0.15
Chromium (Cr): 0.10
Copper (Cu): 3.5-4.5
Aluminum (Al) Allowance
Individual: 0.05

mechanical property

Tensile strength_b (MPa): 215-355
Elongation delta 10 (%): 12-17
Solution treatment temperature: 500 ~510 C.
The annealing range of cold-working materials is 340 ~350 C.
The annealing temperature of the material after heat treatment is 415 C.

Relevant technical standards

The national standard for aluminium sheet and strip (GB/T 3880-2006) is applicable to the unified standard for aluminium alloy sheet and strip materials.
