Aluminum Rod for Cable
Aluminum rod for Electrical Wire and Cable
Signi ‘s production advantage
Signi aluminium has made lots of independent research and development on all type of aluminum rod, produced the special performance of high electrical conductivity and high-strength aluminum electrical round rod,it’s mechanical properties and electrical properties, etc parts all belongs to the high-end products in the new materials industry, walk at the forefront of the market.
Aluminum rod for Electrical Wire and Cable specification:
Diameter deviation and non-round degree on aluminum rod or electrical purpose
Aluminum rod for Electrical Wire and Cable Mechanical properties and Volume Resistivity:
Aluminum rod for Electrical Wire and Cable Description: Signi aluminum rod has the advantages of high roundness, good surface finish, uniform size, etc. The electrical conductivity and mechanical properties are in line with the standards of the International Electrotechnical Commission (IEC) and the American Society for Testing and Materials (ASTM).

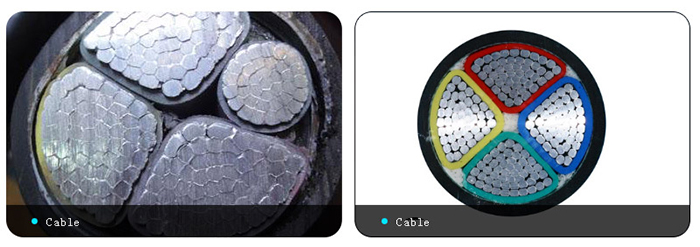

Typical application:Mainly used in wire and cable's main raw materials, widely used in all levels of power grid construction. Through the production process of fine processing, can be used for enameled wire, magnet wire etc production and processing.
Signi ‘s production advantage
Signi aluminium has made lots of independent research and development on all type of aluminum rod, produced the special performance of high electrical conductivity and high-strength aluminum electrical round rod,it’s mechanical properties and electrical properties, etc parts all belongs to the high-end products in the new materials industry, walk at the forefront of the market.
Aluminum rod for Electrical Wire and Cable specification:
| Series | Alloy | Temper | Product type and specification | |
| Aluminum rod/Specification (mm) | ||||
| Diameter | General application | |||
| 1XXX | 1100 |
F,O,H12,H14,H16 |
7.0-20.0 | Cable and wire |
| 1050 | ||||
| 1060 | ||||
| 1070 | ||||
| 1350 | ||||
| 1370 | ||||
| 1A60 | ||||
|
1B90,1B93 1B95,1B97 |
||||
Diameter deviation and non-round degree on aluminum rod or electrical purpose
| Diameter | Deviation | Non-round degree less than |
| 7.0-9.0 | ±0.5 | 0.6 |
| 9.0-11.0 | ±0.5 | 0.9 |
| 11.0-12.0 | ±0.5 | 0.9 |
| Notes: non-round degree is the difference between the biggest and the smallest diameters obtained from the same section where the rod is vertical to axis. | ||
Aluminum rod for Electrical Wire and Cable Mechanical properties and Volume Resistivity:
| Alloy | Model | Temper |
Tensile Strength (Mpa) |
Elongation(10%) （no less than） |
Volume Resistivity （20℃） （nΩ·m） ( not more than) |
|
1B90,1B93 1B95,1B97 |
B | O | 35-65 | 35 | 27.15 |
| B2 | H14 | 60-90 | 15 | 27.25 | |
|
1A60 1350 |
A | O | 60-80 | 25 | 27.55 |
| A2 | H12 | 80-110 | 12 | 27.85 | |
| A4 | H12 | 95-115 | 10 | 28.01 | |
| A6 | H14 | 110-130 | 8 | 28.01 | |
| A8 | H16 | 120-150 | 6 | 28.01 |
Aluminum rod for Electrical Wire and Cable Description: Signi aluminum rod has the advantages of high roundness, good surface finish, uniform size, etc. The electrical conductivity and mechanical properties are in line with the standards of the International Electrotechnical Commission (IEC) and the American Society for Testing and Materials (ASTM).
Typical application:Mainly used in wire and cable's main raw materials, widely used in all levels of power grid construction. Through the production process of fine processing, can be used for enameled wire, magnet wire etc production and processing.
