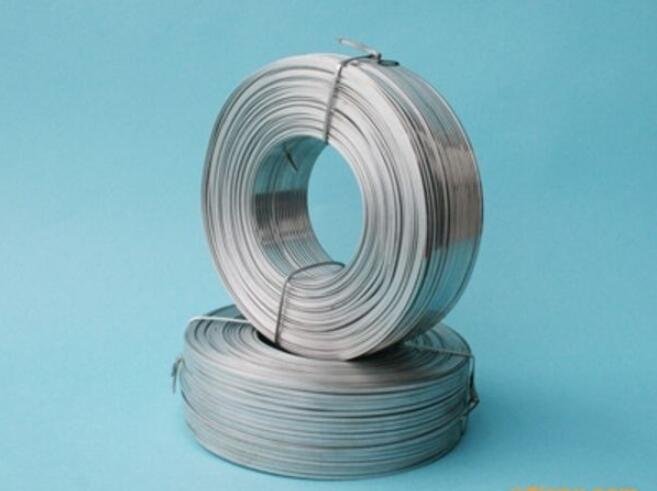

Product introduction: 1350 electric aluminum flat wire is a wire continuously extruded by an oil-free electrician 1350 round aluminum rod through a certain specification of the mold. The extruded 1350 electric aluminum flat wire has a smooth surface, no burr, size and tensile strength of the conductor surface. Uniform strength, low resistivity, etc., can be used as a finished product, or an intermediate product, widely used in the winding of motors, transformers, electric welders and other similar electrical equipment.


● Executive standard: GB5584.3-2009

●Production range:
Aluminum flat wire
Production range: 4mm2-350 mm2
Narrow side size: 0.7mm - 10mm
Wide side size: 3.0mm - 38mm

If the specification is out of the above range or other shaped conductors are used, please contact us.

●Material:
The resistivity of aluminum flat wire at 20 ° C is not more than 0.028010 Ωmm2 / m
● The elongation of aluminum flat wire should meet the requirements of the following table (enterprise standard):

Standard diameter (mm)	Elongation %
0.80-5.6	More 20


● The narrow side a and wide side b dimensions of the aluminum flat wire shall comply with the following table:

Narrow side size/mm	Deviation/mm	Wide side size/mm	Deviation/mm
Less 3.15	+/-0.03	Less 3.15	+/-0.03
3.15-5.6	+/-0.05	3.15-6.3	+/-0.05
		6.3-12.5	+/-0.07
		12.5-16	+/-0.10
