Aluminum-magnesium alloy aluminum wire cable

Editor :frank Time :2022-04-02 10:07

The characteristics of aluminum alloy wire: acid and alkali resistance, corrosion resistance, good toughness, good strength, high temperature 120 degrees Celsius does not fade.

Mainly used in construction, handicrafts, woven nets, communication equipment, medical equipment and brushes, steel cables, filters, high-pressure pipes and other industries

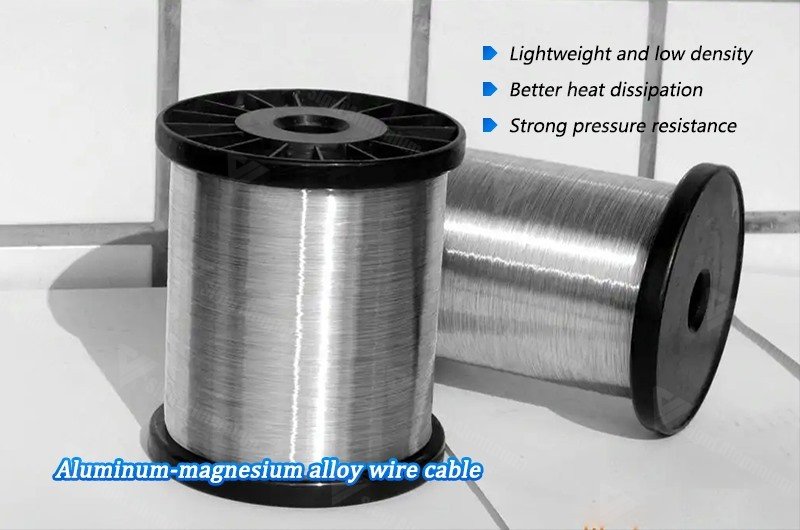

Aluminum-magnesium alloy aluminum wire cable

Specifications of Aluminum-magnesium alloy aluminum wire cable

No. Composition % Specification Coating Properties Typical Application Remarks

LX-01 Aluminum 99.5 ø1.6mm Anti-atmospheric corrosion, good electrical and thermal conductivity, used in changing environments, arc spraying

Aluminum wire ø2.0mm chemical corrosion and high temperature corrosion, bridges, marine facilities, chemical equipment, = TAFA01

Refinery equipment, ships, etc.

Product name: aluminum magnesium alloy wire

Features:

Wire diameter specification: 0.10mm-3.0mm

Aluminum-magnesium alloy wire cable is made from various metal raw materials such as aluminum ingots and aluminum ingots, which are smelted, drawn, and made through multiple wire drawing processes and high temperature annealing. There will be no material variation due to machining or high temperature heat treatment. It has excellent electrical conductivity, the wire is flexible and resistant to bending, has good tensile strength, high elongation, and has the advantages of very light density, which can greatly save copper resources.

Aluminum-magnesium alloy aluminum wire cable is light in weight, low in density, good in heat dissipation and strong in compression resistance, which can fully meet the requirements of high integration, lightness, miniaturization, anti-collision, electromagnetic shielding and heat dissipation of 3C products. Its hardness is several times that of traditional glass filaments, but its weight is only one-third of the latter.

Application areas:

Flexible coaxial cables, various audio and video cables, vehicle signal cables, network connection cables, data transmission cables, etc. Can be used for the aforementioned cables: cable conductors, shield braids, single conductors and stranded conductors, etc. Suitable for lead pins and leads of various electronic parts, such as capacitors, resistors, etc.

standard packaging:

Plate: DIN 100mm, DIN 130mm, DIN 180mm
