Aluminum magnesium silicon antirust aluminum alloy wire 6061

Editor :frank Time :2019-04-10 17:05
product description:
Grade: 6061
Specifications: 3.45MM / 4.24MM / 5.18MM / 6.3 / 7.8MM / 9.3MM / 16.8MM
Temple: T2

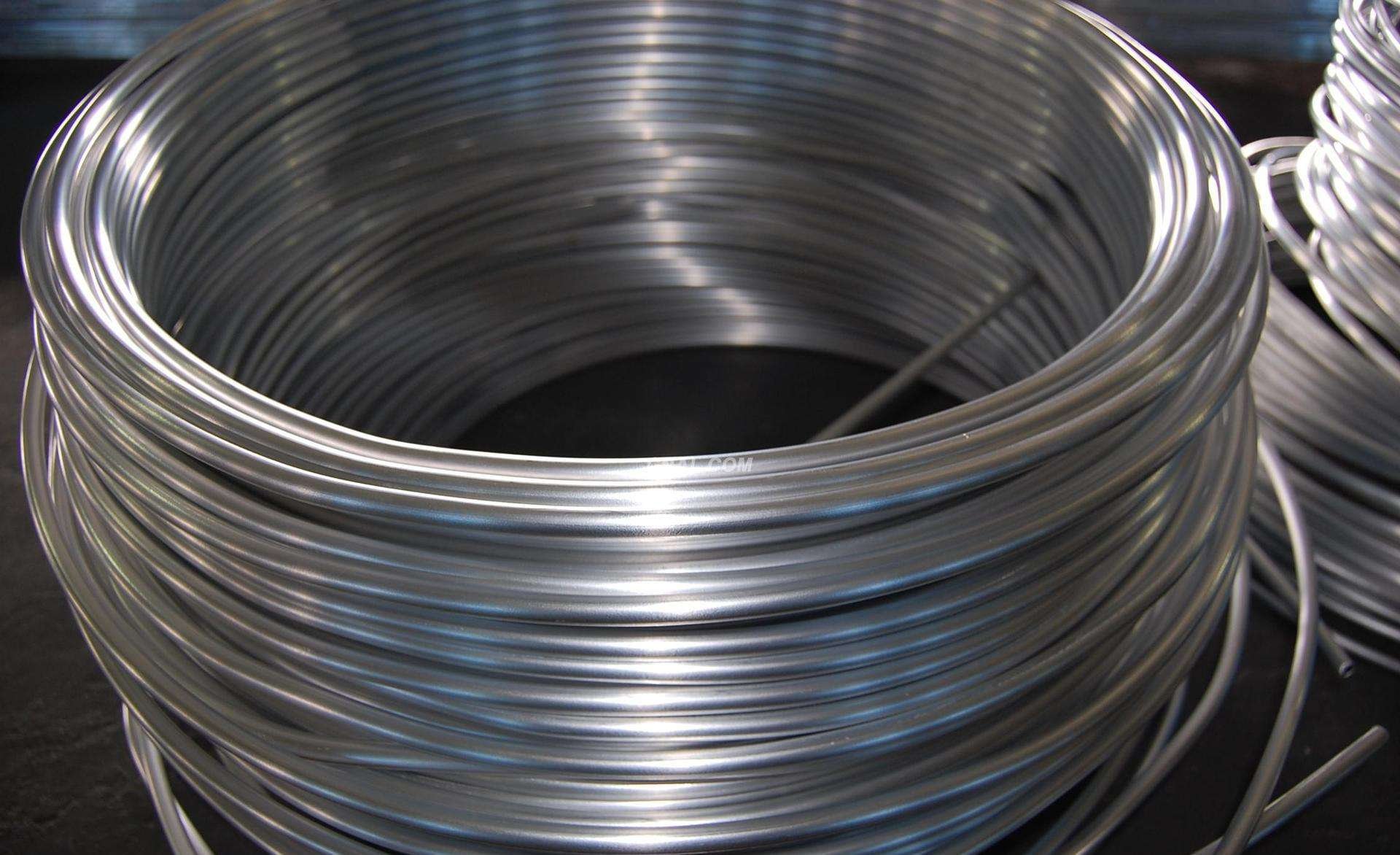

The net weight of a coil of aluminum alloy wire is about 300 kg, and the outermost diameter is about 1.5M.



The 6061 grade aluminum alloy wire is stable in material and is in compliance with national standards for supervision and production. The large-diameter aluminum alloy wire is formed by high-temperature die-casting, and the molecular structure and physical properties of the product are very stable. Different production processes and requirements can be completed according to customer requirements. Excellent in cold heading and color oxidation
Uses: pre-twisted wire, high-voltage wire and cable
Chemical composition:
chemical composition:  Al Si Fe Cu Mg Mn
Balance 0.40-0.8 0.7 max 0.15-0.40 0.8-1.2 0.15 max
Ni Cr Ti Ga V Zn
/ 0.04-0.35 0.15 max / / 0.25 max
