Resistivity <34.5
Tensile strength 150-200Mpa
Elongation ≥10

The 6101 aluminium alloy wire rod conductor material is commonly used for long-distance overhead wire cables, cable conductors that operate at high temperatures for a long time, and cable conductors that require creep resistance, and are especially preferred materials for export orders by customers.

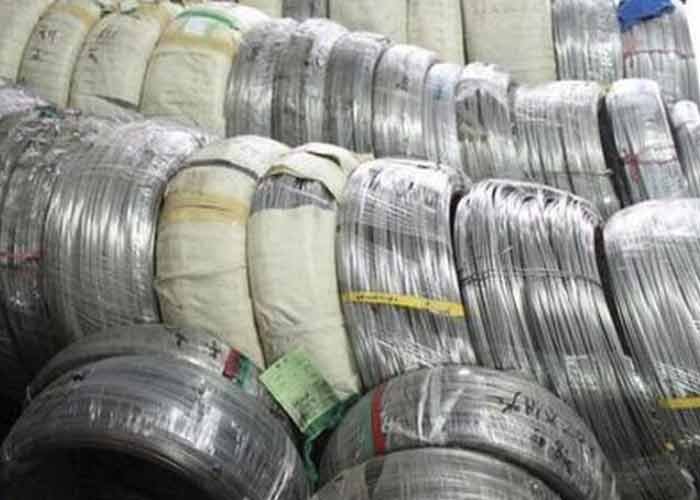

6101 aluminium alloy wire rod provider

The conductivity of 6101 aluminium alloy wire rod can reach 57%-59% IACS, and the wiring harness specification is HRF56---60. There are many ready-made molds to save customers...
The 6101 aluminum alloy wire rod has medium strength and high conductivity, and can be used for long-distance power transmission lines. Compared with the traditional steel core aluminum alloy stranded wire (ACSR), the all-aluminum alloy stranded wire (AAAC) formed by a single Al-Mg-Si alloy wire can avoid electrical corrosion and improve the transmission efficiency. At the same time, the maintenance cost of the transmission line is reduced. At the same time, Al-Mg-Si series alloys are heat-treatable and strengthened alloys, and their strength and electrical conductivity can be adjusted by solid solution + aging heat treatment. The processing flow of aluminum alloy wire is: casting-rolling-solution treatment-cold drawing-aging heat treatment to make it have higher strength
